How do we get from
vertices to a shape

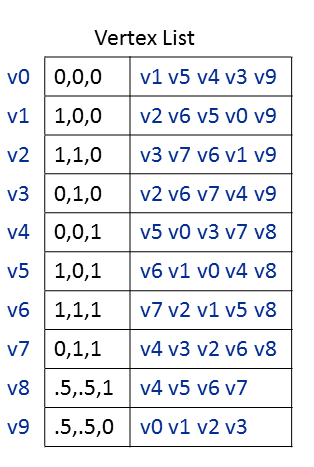

What is a vertex?

Model Space and World Space

View Space

Projection Space

End in 2D

Vertices to a shape

But how do we ...

transform between spaces?

Model -> World -> View -> Projection Space

Welcome to Linear Algebra

2D Vertex, meet Matrix!

Now multiply...

1.
2. ( 1 * x ) + ( 0 * y ) = x
3. ( 0 * x ) + ( -1 * y ) = -y

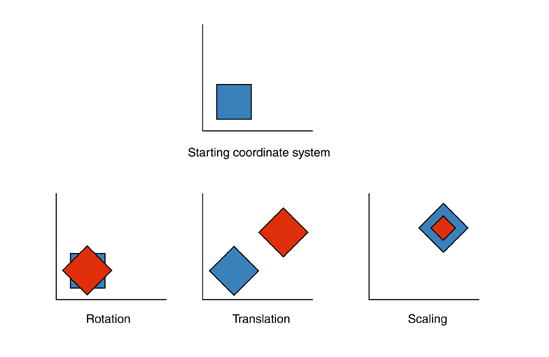

Transformations

• identity:

• scaling:


• rotation:

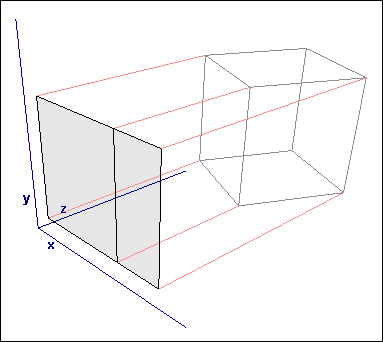

Projection

  [1, 0, 0] [x]   [x]
  [0, 1, 0] [y] = [y]
  [0, 0, 0] [z]   [0]

* We lose a dimension!

Composite Transformation

Putting it all together

World_View_Projection_Matrix =
World * View * Projection

Transformations + Projection

----------------------------------
Model * World_View_Projection_Matrix

How do we get from
a shape to colored pixels

Rasterization: Shapes -> Pixels

Texture: UV Mapping

Getting the value of the color...

Lighting

Getting the strength of the color...

Ambient, Diffuse, Specular

Materials

Combining all lighting and textures for the final color

Coloring the pixels:
Texture and Lighting

But how do we ...

figure out the amount of light?

Putting the rgba in a pixel's RGBA

Welcome BACK to Linear Algebra

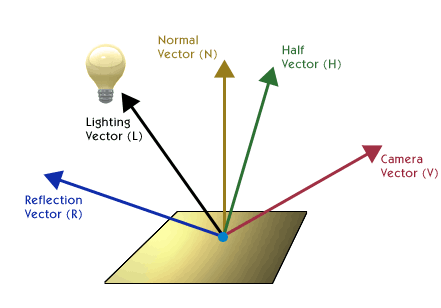

The Normal

Lighting

The Dot Product

Lighting

• N * L = dot product
• color.rgb * dot product = amount of color

Lighting Demystified (somewhat)

Graphic Pipelines: How it started

Software Rendering

• Entirely done on CPU
• Unaided by graphics hardware
• Ultimate flexibility

How it was: Fixed Function Pipeline

How it was: Fixed Function Pipeline

• Introduction of GPU hardware support
• Sacrificed flexibility for speed

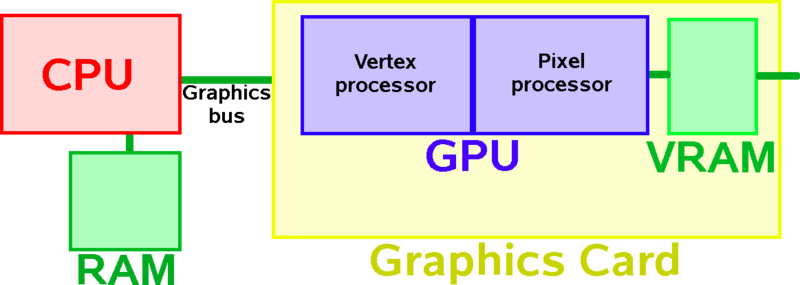

The Graphics Card

How it is: Programmable Graphics Pipeline

How it is: Programmable Graphics Pipeline

What is WebGL?

OpenGL ES2.0 port built into the <canvas> DOM element

wtf

function init(scene) {
  // Initialize
  var gl = WebGLUtils.setupWebGL(scene.canvas);
  if (!gl) {
    return;
  }

  scene.program = simpleSetup(
    gl,
    // The ids of the vertex and fragment shaders
    "vshader", "fshader",
    // The vertex attribute names used by the shaders.
    // The order they appear here corresponds to their index
    // used later.
    [ "vNormal", "vColor", "vPosition"],
    // The clear color and depth values
    [ 0, 0, 0, 0 ], 10000);

  // Set up a uniform variable for the shaders
  gl.uniform3f(gl.getUniformLocation(scene.program, "lightDir"), 0, 0, 1);

  // Create a box. On return 'gl' contains a 'box' property with
  // the BufferObjects containing the arrays for vertices,
  // normals, texture coords, and indices.
  scene.box = makeBox(gl);

  // Set up the array of colors for the cube's faces
  var colors = new Uint8Array(
    [  0, 0, 1, 1,   0, 0, 1, 1,   0, 0, 1, 1,   0, 0, 1, 1,     // v0-v1-v2-v3 front
      1, 0, 0, 1,   1, 0, 0, 1,   1, 0, 0, 1,   1, 0, 0, 1,     // v0-v3-v4-v5 right
      0, 1, 0, 1,   0, 1, 0, 1,   0, 1, 0, 1,   0, 1, 0, 1,     // v0-v5-v6-v1 top
      1, 1, 0, 1,   1, 1, 0, 1,   1, 1, 0, 1,   1, 1, 0, 1,     // v1-v6-v7-v2 left
      1, 0, 1, 1,   1, 0, 1, 1,   1, 0, 1, 1,   1, 0, 1, 1,     // v7-v4-v3-v2 bottom
      0, 1, 1, 1,   0, 1, 1, 1,   0, 1, 1, 1,   0, 1, 1, 1 ]    // v4-v7-v6-v5 back
  );

  // Set up the vertex buffer for the colors
  scene.box.colorObject = gl.createBuffer();
  gl.bindBuffer(gl.ARRAY_BUFFER, scene.box.colorObject);
  gl.bufferData(gl.ARRAY_BUFFER, colors, gl.STATIC_DRAW);

  // Create some matrices to use later and save their locations in the shaders
  scene.mvMatrix = new J3DIMatrix4();
  scene.u_normalMatrixLoc = gl.getUniformLocation(scene.program, "u_normalMatrix");
  scene.normalMatrix = new J3DIMatrix4();
  scene.u_modelViewProjMatrixLoc =
    gl.getUniformLocation(scene.program, "u_modelViewProjMatrix");
  scene.mvpMatrix = new J3DIMatrix4();

  // Enable all of the vertex attribute arrays.
  gl.enableVertexAttribArray(0);
  gl.enableVertexAttribArray(1);
  gl.enableVertexAttribArray(2);

  // Set up all the vertex attributes for vertices, normals and colors
  gl.bindBuffer(gl.ARRAY_BUFFER, scene.box.vertexObject);
  gl.vertexAttribPointer(2, 3, gl.FLOAT, false, 0, 0);

  gl.bindBuffer(gl.ARRAY_BUFFER, scene.box.normalObject);
  gl.vertexAttribPointer(0, 3, gl.FLOAT, false, 0, 0);

  gl.bindBuffer(gl.ARRAY_BUFFER, scene.box.colorObject);
  gl.vertexAttribPointer(1, 4, gl.UNSIGNED_BYTE, false, 0, 0);

  // Bind the index array
  gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER, scene.box.indexObject);

  return gl;
}


function reshape(scene, gl) {
  var canvas = scene.canvas;

  // Set the viewport and projection matrix for the scene
  gl.viewport(0, 0, canvas.width, canvas.height);
  scene.perspectiveMatrix = new J3DIMatrix4();
  scene.perspectiveMatrix.perspective(30, canvas.width/canvas.height, 1, 10000);
  scene.perspectiveMatrix.lookat(0, 0, 7, 0, 0, 0, 0, 1, 0);
}

function drawPicture(scene, gl) {
  // Make sure the canvas is sized correctly.
  reshape(scene, gl);

  // Clear the canvas
  gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

  // Make a model/view matrix.
  scene.mvMatrix.makeIdentity();
  scene.mvMatrix.rotate(20, 1,0,0);
  scene.mvMatrix.rotate(scene.currentAngle, 0,1,0);

  // Construct the normal matrix from the model-view matrix and pass it in
  scene.normalMatrix.load(scene.mvMatrix);
  scene.normalMatrix.invert();
  scene.normalMatrix.transpose();
  scene.normalMatrix.setUniform(gl, scene.u_normalMatrixLoc, false);

  // Construct the model-view * projection matrix and pass it in
  scene.mvpMatrix.load(scene.perspectiveMatrix);
  scene.mvpMatrix.multiply(scene.mvMatrix);
  scene.mvpMatrix.setUniform(gl, scene.u_modelViewProjMatrixLoc, false);

  // Draw the cube
  gl.drawElements(gl.TRIANGLES, scene.box.numIndices, gl.UNSIGNED_BYTE, 0);

  scene.currentAngle += scene.incAngle;
  if (scene.currentAngle > 360)
    scene.currentAngle -= 360;
}

window.samples.webgl_spinning_cube = {

  initialize: function(canvas) {
    var scene = { canvas: canvas };

    canvas.addEventListener('webglcontextlost', handleContextLost, false);
    canvas.addEventListener('webglcontextrestored', handleContextRestored, false);

    canvas.width = sample_defaults.width;
    canvas.height = sample_defaults.height;

    var gl = init(scene);
    if (!gl) {
      return;
    }

    scene.currentAngle = 0;
    scene.incAngle = 0.5;

    var requestId;
    function animate() {
      drawPicture(scene, gl);
      requestId = window.requestAnimFrame(animate, canvas);
    }

    animate();

    function handleContextLost(e) {
      e.preventDefault();
      if (requestId !== undefined) {
        window.cancelAnimFrame(requestId);
        requestId = undefined;
      }
    }

    function handleContextRestored() {
      init(scene);
      animate();
    }
  }


What we care about

1. Setup on CPU
2. Vertex Processor (vertices -> shapes)
3. Fragment Processor (pixels -> colored pixels)

CPU: Javascript

    var gl = WebGLUtils.setupWebGL(scene.canvas);

    scene.program = simpleSetup(
      gl,

      "webgl_vshader", // id of the vertex shader

      "webgl_bland_fshader", // id of fragment shader

      [ "vPosition"], // Vertex attribute used by the shader

      [ 0, 0, 0, 0 ], 10000); // The clear color and depth values

    scene.box = makeBox(gl);

    // Set up the vertex buffer
    gl.bindBuffer(gl.ARRAY_BUFFER, scene.box.vertexObject);
    ...


CPU: Javascript

function drawPicture(scene, gl) {
  // Clear the canvas
  gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

  // Construct the model-view * projection matrix
  scene.mvpMatrix.load(scene.perspectiveMatrix);
  scene.mvpMatrix.multiply(scene.mvMatrix);

  // Pass the moel-view-proj matrix in to the Shaders
  scene.mvpMatrix.setUniform(gl, scene.u_modelViewProjMatrix, false);

  // Draw the cube
  gl.drawElements(gl.TRIANGLES, scene.box.numIndices, gl.UNSIGNED_BYTE,0);
}


Vertex Processor: Vertex Shader

    uniform mat4 u_modelViewProjMatrix; // Passed in from CPU

    attribute vec4 vPosition; // Information from vertex

    void main()
    {
        gl_Position = u_modelViewProjMatrix * vPosition;
    }


Fragment Processor: Fragment Shader

    void main()
    {
        gl_FragColor = vec4(1, 1, 1, 1); // RGBA
    }


GLSL

• OpenGL Shading Language (GLSL): A high-level shading language based on the syntax of the C programming language.

Vertex Shader

    uniform mat4 u_modelViewProjMatrix; // Passed in from CPU
    uniform mat4 u_normalMatrix;
    uniform vec3 lightDir;

    attribute vec3 vNormal; // Received from Vertex Buffer
    attribute vec4 vPosition;

    varying float v_Dot; // Variables output to Fragment Shader
    varying vec4 v_Color;

    void main()
    {
        gl_Position = u_modelViewProjMatrix * vPosition;

        v_Color = vec4(1, 1, 1, 1); // White

        vec4 transNormal = u_normalMatrix * vec4(vNormal, 1);
        v_Dot = max(dot(transNormal.xyz, lightDir), 0.0);
    }


Fragment Shader

    varying float v_Dot; // Passed in from Vertex Shader via Rasterizer
    varying vec4 v_Color;

    void main()
    {
        gl_FragColor = vec4(v_Color.xyz * v_Dot, v_Color.a);
    }


What is ThreeJS?

The aim of the project is to create a lightweight 3D library with a very low level of complexity — in other words, for dummies.
The library provides <canvas>, <svg> and WebGL renderers.

Intro to ThreeJS: Spinning Cube

  var scene = new THREE.Scene();

  var camera = new THREE.PerspectiveCamera( 30, width / height, 1, 1000 );
  camera.position.set(0, 3, 7);
  camera.lookAt( new THREE.Vector3(0,0,0));

  var scale = 2.5;
  var geometry = new THREE.CubeGeometry( scale, scale, scale );
  var material = new THREE.MeshBasicMaterial( { color: 0xdddddd } );

  var mesh = new THREE.Mesh( geometry, material );
  scene.add( mesh );

  var renderer = new THREE.WebGLRenderer({canvas: canvas, antialias: true});
  renderer.setSize( width, height );

  function animate() {
    requestAnimationFrame( animate, canvas );
    mesh.rotation.y += 0.008;
    renderer.render( scene, camera );
  }
  animate();
}


16 lines of code

Scene

  var scene = new THREE.Scene();


Encapsulates everything with regard to this rendering

• Matrices
• Camera
• Models

Camera

var camera = new THREE.PerspectiveCamera(30, width/height, 1,1000);
camera.position.set(0, 3, 7);
camera.lookAt( new THREE.Vector3(0,0,0));


Geometry

var scale = 2.5;
var geometry = new THREE.CubeGeometry( scale, scale, scale );


Materials

var material = new THREE.MeshBasicMaterial({ color: 0xdddddd });


Encapsulates:

• Texture
• Attributes
• Shaders

Mesh

var mesh = new THREE.Mesh( geometry, material );
scene.add( mesh );


• geometry: Vertices -> Shapes
• material: Pixels -> Colored Pixels


• World Matrix

Renderer

var renderer = new THREE.WebGLRenderer({canvas: canvas});
renderer.setSize( width, height );


request Animation Frame?

Welcome to the Render Loop

  function animate() {
    requestAnimationFrame( animate );

    mesh.rotation.y += 0.008;
    renderer.render( scene, camera );
  }
  animate();


Materials: Phong

Assignment: Add Light

  var material = new THREE.MeshPhongMaterial({ color: 0xdddddd });

  ...
  var directionalLight = new THREE.DirectionalLight ( 0xffffffff );
  directionalLight.position.set(0, 3, 7);
  scene.add( directionalLight );


Materials: Texture

Assignment: Add Texture

var texture = THREE.ImageUtils.loadTexture(
      'images/checker_large.gif',
      {},
      function() {
        animate();
      }
);

//var material = new THREE.MeshPhongMaterial({ color: 0xdddddd });
var material = new THREE.MeshPhongMaterial({ map: texture });


ThreeJS: Loading Meshes

Credit for model goes to Chris Kuhn

Blender and ThreeJS

• Grab models from Blendswap: Startrek Collection
• Blender: Content creation tool for 3D models
• Can export to the Three js file format
• Startrek Enterprise Mesh JSON

ThreeJS: Importing Mesh

// REMOVED
// var geometry = new THREE.CubeGeometry( 70, 70, 70 );
// var material = new THREE.MeshBasicMaterial({color: 0xdddddd});

var loader = new THREE.JSONLoader();
loader.load("js/meshes/Startrek_Enterprise.js", function(geometry, materials) {

  mesh = new THREE.Mesh( geometry, materials[0] );
  scene.add( mesh );
  ...


with Textures

Credit for model goes to Chris Kuhn

ThreeJS: Particles

Primitives

ThreeJS: Particles

    geometry = new THREE.Geometry();

    for ( i = 0; i < 20000; i ++ ) {
      var vertex = new THREE.Vector3();
      vertex.x = Math.random() * 2000 - 1000;
      vertex.y = Math.random() * 2000 - 1000;
      vertex.z = Math.random() * 2000 - 1000;

      geometry.vertices.push( vertex );
    }


    particles = new THREE.ParticleSystem( geometry, materials[i] );

    scene.add( particles );


Only 20k, how about a million?

• Magic Dust Particles
• A Million Letters

ThreeJS: Normal Mapping

Using the RGB for your normal's XYZ

Old school: Per Vertex Lighting

New school: Per Pixel Lighting

Normal Map

Normal Map

ThreeJS: Custom Shaders

  // Grab shader code
  var vertexShader = $('#normal_map_vs').text();
  var fragmentShader = $('#normal_map_fs').text();

  // Configure material parameters
  var parameters = {
    // Shaders
    fragmentShader: fragmentShader,
    vertexShader: vertexShader,

    // Shader Data
    uniforms: uniforms,
    attributes: attributes
  };

  // Create custom shader material
  var normal_material = new THREE.ShaderMaterial( parameters );

  // Add mesh
  var mesh = new THREE.Mesh( geometry, normal_material );
  scene.add( mesh );


Showcase: Skin Material

ThreeJS: Post-Processing

Render to Texture

  var renderTarget = new THREE.WebGLRenderTarget(
    sample_defaults.width,
    sample_defaults.height,
    renderTargetParameters);
    ...

  renderer.render( worldScene, camera, renderTarget );
  planeMaterial.uniforms[ "tDiffuse" ].texture = renderTarget;
  renderer.render( planeScene, camera );


2 Pass Blurring

Multiple passess...

  var composer = new THREE.EffectComposer( renderer );

  // 3 Passes...
  var renderModel = new THREE.RenderPass(scene, camera);
  var horizontalBlur = new THREE.ShaderPass(horizontalBlurShaders);
  var verticalBlur = new THREE.ShaderPass(verticalBlurShaders);

  verticalBlur.renderToScreen = true;

  composer.addPass( renderModel );
  composer.addPass( horizontalBlur );
  composer.addPass( verticalBlur );

  ...
  // renderer.render( scene, camera ); REMOVED
  composer.render(0.1);


Showcase: Post-processing Filters

Shadow Maps

Render to texture

Render a snap shot from the perspective of the light

Height Map in Vertex Buffer
